The range of 12V sampling pumps from Proactive Environmental Products are a robust, cost effective and simple to use groundwater purging and sampling solution. This range includes several pump sizes capable of lifting water from a depths up to 37m within a 2″ wellscreen!
To operate the pump, field technicians connect sample tubing (Ø10mm ID), deploy the pump at the required sample depth and connect to 12V power supply such as a field battery.
12V submersible pumps are a fantastic solution for projects which do not require low flow sampling techniques.
If you require assistance with pump selection please reach out to our team!
| Pump Construction | ABS, Polyacetal impeller, stainless steel impeller shaft with nitrile seal |
| Cable | High quality PVC coated cable. Various lengths depending on pump selected |
| Dimensions | Ø43mm outer diameter (suitable for use in 2″ wells), length dependent on model |
| Required tubing | Our 10x12mm PE sample tubing |
| Power supply | Requires 12-15Vdc supply from field battery or similar |
| Manufacturer | Proactive Environmental Products (R) |
| Pump | Max depth to water (m)* |
| Typhoon | 15 |
| Twister | 18 |
| Mini Monsoon | 21 |
| Super Twister | 26 |
| Tornado | 31 |
| Supernova 70 (slimline) | 21 |
| Supernova 120 (slimline) | 37 |

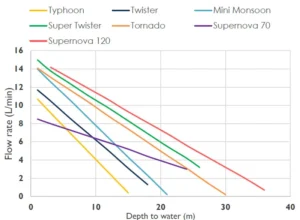

*flow values based on those published by the manufacturer utilising 1/2″ sample tube and 12.5V power supply
