LORENTZ S1-200 Self Install Solar Water Pump

The LORENTZ S1-200 is a compact, high-efficiency solar-powered submersible pump system designed to provide reliable water transfer without the need for mains electricity or a generator. Powered directly from solar PV, the S1-200 provides a simple solution for remote and off-grid water supply applications.

The system uses an efficient 250 W brushless DC motor and progressive cavity (helical rotor) pump, providing effective pumping at relatively low solar power levels. Depending on the selected pump end and installation conditions, the S1-200 can provide up to 40 m head and 27,000 litres of water per day.

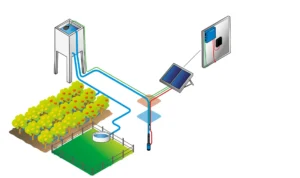

Designed as a complete plug-and-play system, the S1-200 includes the submersible pump, controller and pre-wired connections. A minimum 200 Wp solar array is required allowing a compact system to operate directly from solar energy without batteries. Flux Enviro recommend a 400Wp solar array based on local irradiation levels.

Key Features

• Solar-powered submersible water pump

• Up to 40 m maximum head

• Up to 27,000 litres/day maximum water delivery

• 250 W high-efficiency brushless DC motor

• Progressive cavity / helical rotor pump

• Operates from as little as 200 Wp solar

• No battery or inverter required

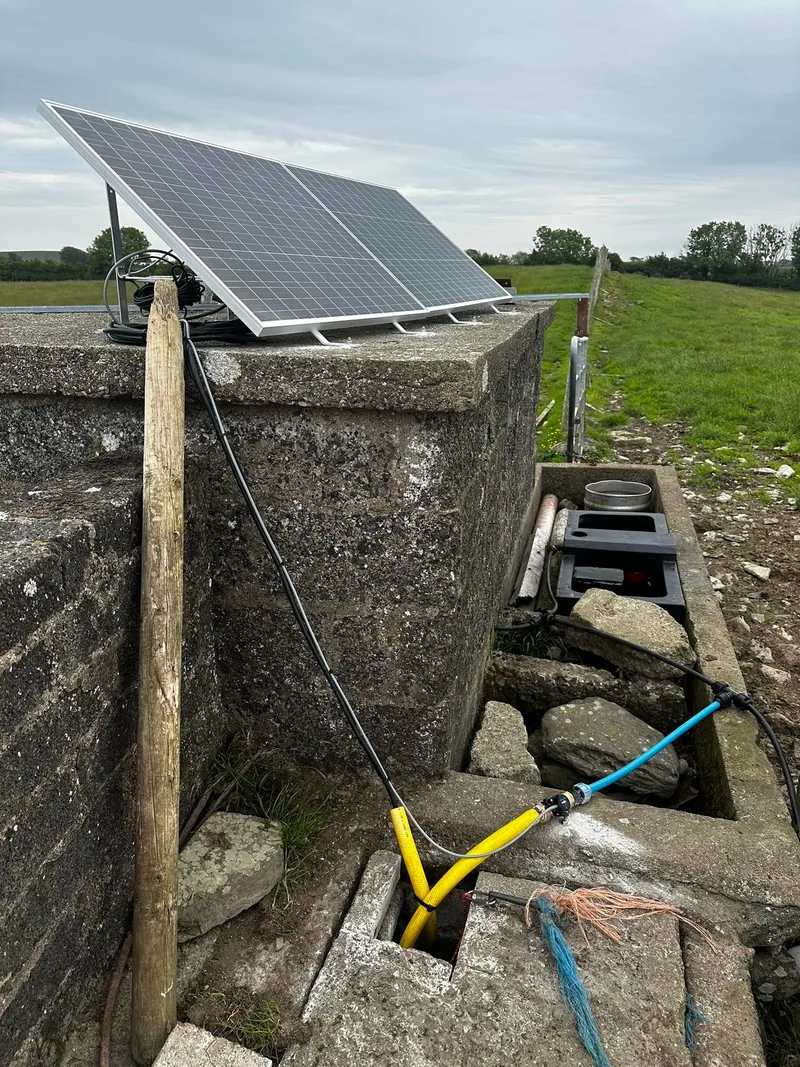

• Suitable for boreholes, wells, rivers, ponds, reservoirs and tanks

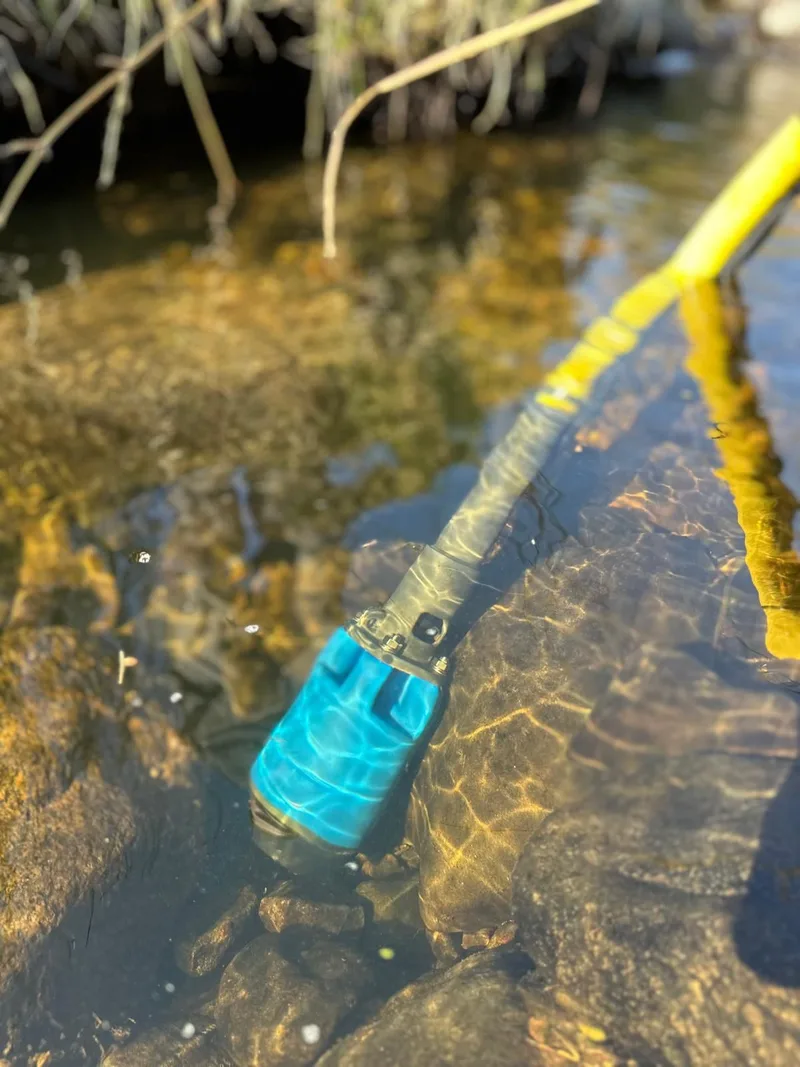

• Can operate horizontally in shallow water sources

• Compact and portable design

• Bluetooth connectivity

• Monitoring and control through the LORENTZ S-Connect app

• Optional dry-run and tank-full protection

• Remote tank control available

• Simple plug-and-play installation

Plug and Play Kit

Each LORENTZ S solar water pump kit contains;

• Pump controller with inputs for PV, pump, dry run protection and tank full switch, with Bluetooth connectivity.

• Ready assembled and pre-wired pump unit with 15m cable and plug.

• MC4 adapter cable to connect PV modules and the controller (S1-200)

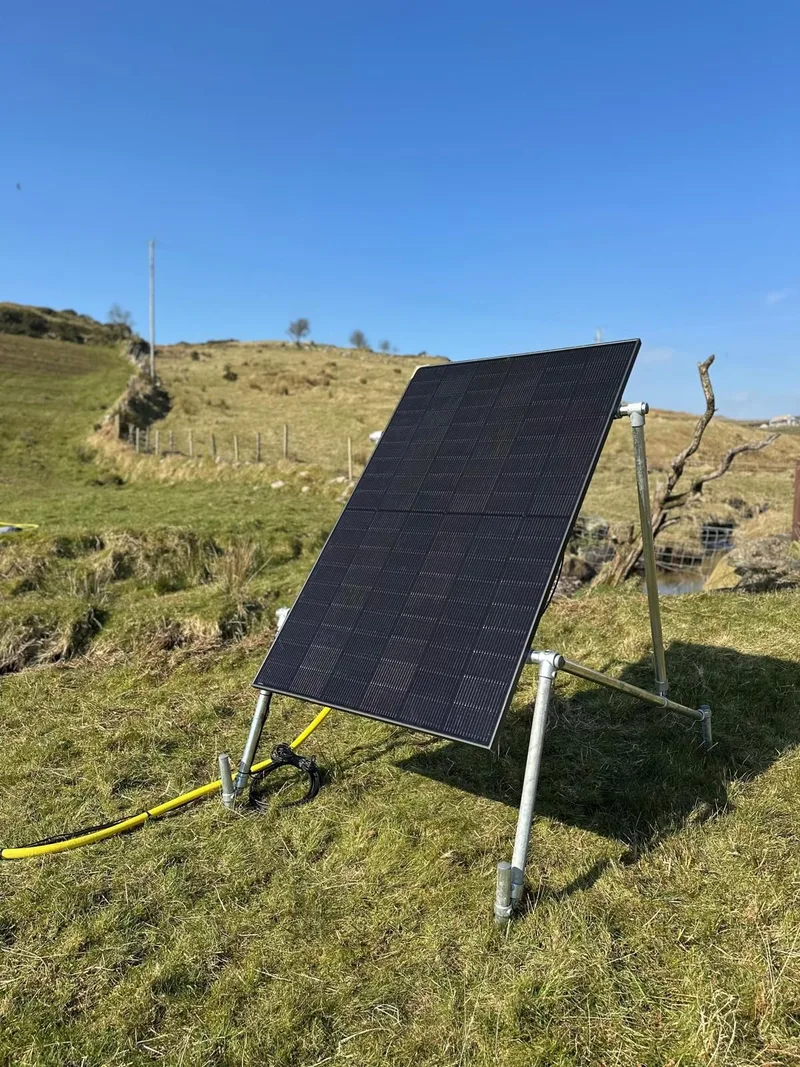

• 200Wp solar panel kit (2 x 100Wp modules with brackets)

• 2 controller module fixing screws

• 1” hose clamp

• User manual with links to helpful videos and FAQ (www.lorentz.de/shelp

Applications

The S1-200 is particularly suited to remote water transfer, environmental field applications, livestock watering, small-scale irrigation, tank filling and off-grid water supply. Water can be pumped directly from boreholes, wells, rivers, lakes, ponds, reservoirs and storage tanks.

The perfect solution for livestock, small scale farming, off-grid homes and garden irrigation!

• Water supply for >100 livestock units or 1 acre of irrigation every day

• Suitable for any water sources such as boreholes (wells), rivers, lakes, ponds, water streams, reservoirs or even water tanks

• Portable pump, easy to carry

• Operate with a single PV Module (200Wp)

• Progressive cavity (helical rotor) pump end, suitable to run by lower power which extends the operational day

• Can be operate laying down in shallow water sources

• Durable, engineering polymer, pump unit

• Up to 40m/130ft head

• Up to 27,000 litre/7,200 USG water per day

• 250W DC brushless motor with 87 percent efficiency

• Light weight kit 7.2kg/15.9lbs, for portability

• Real time info and control by S-Connect iPhone/Android application
